A Different Approach to Handguard Heat Management
Heat is one of the most common problems shooters deal with during sustained fire. As the barrel and gas system build temperature, that heat migrates into the surrounding handguard. Once the handguard begins to heat soak, the shooter-contact surface can become uncomfortable, even with gloves.

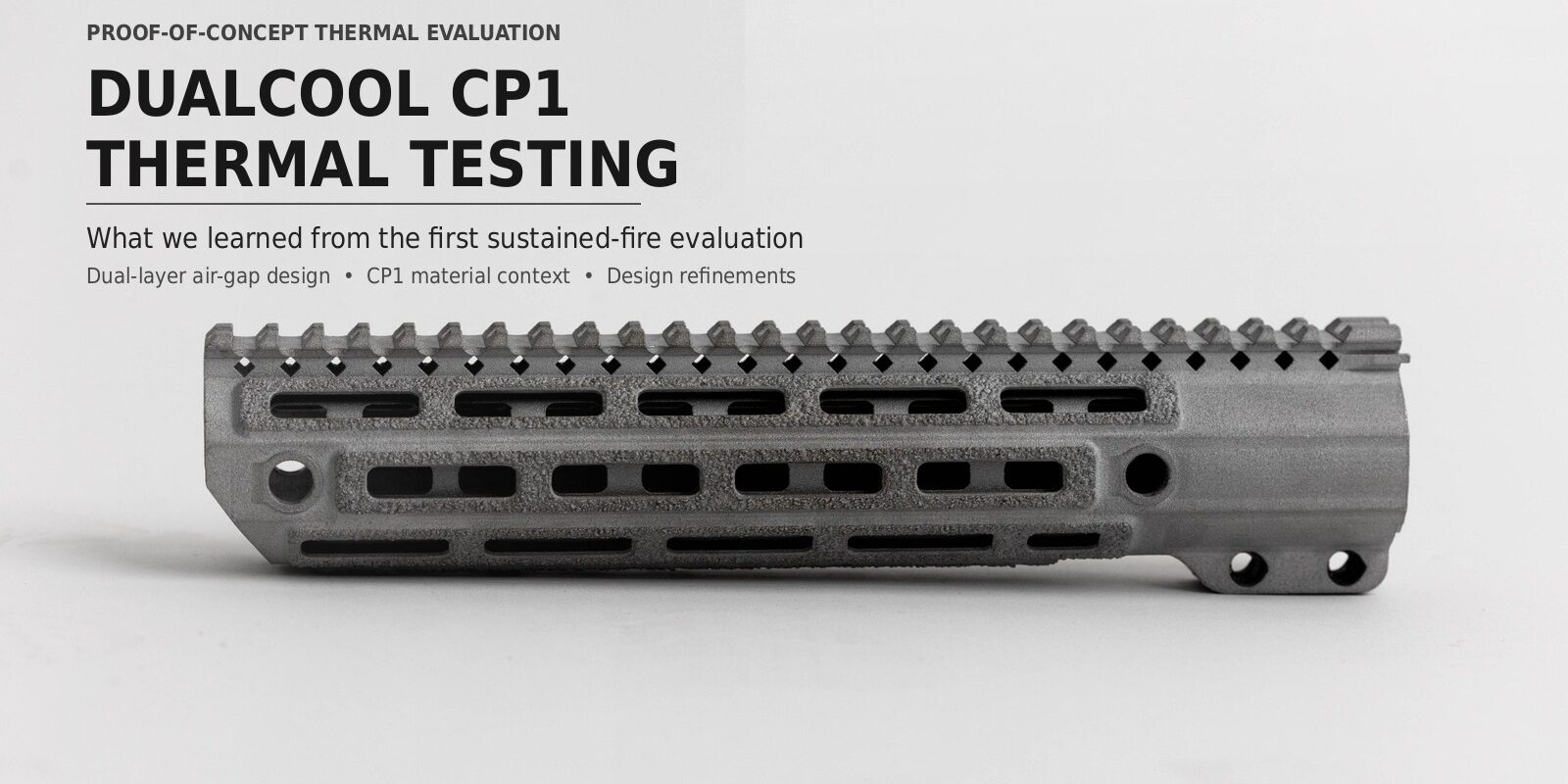

The DualCool CP1 handguard was developed to approach that problem differently.
Instead of relying on a traditional single-wall rail design, DualCool uses an industrial 3D-printed CP1 metal structure with a dual-layer architecture and internal air-gap concept. The goal is not to make a handguard that stays cold. Any rail surrounding a hot barrel and gas system will heat up. The goal is to control how heat moves through the handguard and reduce how aggressively it reaches the outside surface where the shooter holds the rifle.
Our first proof-of-concept thermal evaluation was designed to answer a simple question:
Does the DualCool architecture show measurable thermal separation compared to a traditional handguard under sustained-fire conditions?
Based on the May 18, 2026 test data, the answer is yes — especially at the gas-block-area measurement location, where handguard heat soak is most relevant.
For current configurations, finishes, availability, and product details, visit the DualCool CP1 Handguard product page.
What We Tested
The evaluation compared a DualCool CP1 handguard against a traditional handguard configuration using the same rifle, ammunition, firing cadence, support system, and measurement process.
Testing was conducted without touching the handguards during firing or cooldown. The rifle was mounted to a Two Vets tripod with ARCA support, the bolt was locked to the rear during cooling, and the rifle was allowed to return to ambient temperature before changing handguard configurations.
Test overview:
| Test Parameter | Summary |
|---|---|
| Test date | May 18, 2026 |
| Location | Holly Ridge, North Carolina |
| Ambient temperature | 87°F |
| Rifle | Mitchell Defense DOC 5.56 with 16-inch stainless steel barrel |
| Gas system | Mid-length |
| Ammunition | 5.56 MMI, 55 grain |
| Rate of fire | Semi-automatic, approximately 2 rounds per second |
| Suppressor | None |
| Support | Two Vets tripod with ARCA mount |
| Measurement focus | Gas-block area, barrel-nut area, and upper-receiver area |
This test should be viewed as a proof-of-concept evaluation, not a final production certification report. The purpose was to evaluate the design direction, identify what worked, and determine where the next iteration should improve.
The Clearest Result: Gas-Block-Area Temperature Separation
The strongest performance separation appeared at the gas-block-area measurement location.
That matters because the gas-block zone is one of the areas most closely tied to handguard heat soak during sustained fire. If a handguard design is going to show a thermal-management advantage, this is one of the key places it should appear.
Across 25 gas-block-area readings, DualCool measured lower than the traditional handguard in 24 of them. The average gas-block-area temperature was 192.9°F for the traditional handguard and 130.8°F for DualCool.
That is an average difference of 62.1°F lower at the gas-block-area measurement location in this proof-of-concept dataset.
| Gas-Block-Area Metric | Traditional Handguard | DualCool CP1 | Observed Difference |
|---|---|---|---|
| Average across all gas-block-area readings | 192.9°F | 130.8°F | 62.1°F lower |
| Average across 30-120 sec post-fire windows | 206.0°F | 135.2°F | 70.8°F lower |
| Average 7-minute recovery reading | 140.6°F | 113.6°F | 27.0°F lower |
| Maximum observed reading in dataset | 414°F | 190°F | 224°F lower peak-to-peak |
| Readings at or above 200°F | 9 | 0 | DualCool had zero |
The most important takeaway is not that DualCool eliminates heat. It does not. The important takeaway is that the dual-layer design showed measurable separation at the location where handguard heat soak was most pronounced.
The Difference Became More Pronounced Under Higher Heat Load
One of the most useful observations was that the difference became more pronounced as cumulative heat increased.
During the highest heat portions of the test, the DualCool structure showed its strongest separation from the traditional handguard at the gas-block-area measurement point. After the final 100-round sequence, the 7-minute recovery reading at the gas-block-area location measured:
| Final 100-Round Course, 7-Minute Recovery | Temperature |
|---|---|
| Traditional handguard | 220°F |
| DualCool CP1 | 129°F |
| Difference | 91°F lower |
This is an important result because it points to the role of the internal structure and air-gap strategy under repeated heat loading. In other words, the difference was not only visible during initial warm-up. It became especially meaningful after the rifle had already been through previous heat cycles.
What the Other Measurement Locations Told Us
The gas-block-area result was clear. The barrel-nut and upper-receiver readings were much closer.
That is valuable information, not a drawback. Proof-of-concept testing should show both strengths and areas for refinement.
| Measurement Location | Avg. Traditional | Avg. DualCool | Avg. Difference | Interpretation |
|---|---|---|---|---|
| Gas-block area | 192.9°F | 130.8°F | 62.1°F lower | Strongest observed thermal separation |
| Barrel-nut area | 136.7°F | 135.6°F | 1.1°F lower | Comparable / mixed readings |
| Upper-receiver area | 119.7°F | 118.5°F | 1.2°F lower | Minimal separation; useful control point |
The barrel-nut and upper-receiver readings show that the primary observed advantage was concentrated around the handguard / gas-block thermal zone. They also identified the rear mounting interface and barrel-nut heat path as important refinement areas for the next design iteration.
That is exactly why this test matters. It did not just give us a marketing number. It gave us design direction.
What This Means for the DualCool Design
The first DualCool test supports the core concept: a dual-layer, air-gap handguard structure can produce meaningful thermal separation at the gas-block-area measurement location compared to a traditional handguard under sustained-fire conditions.
It also confirmed that further development should focus on improving the rear interface and refining the heat path around the mounting area.
Based on this testing, we have already made design changes to the next version of the DualCool platform. Those updates are being made to improve the balance between heat management, structural rigidity, manufacturability, and real-world usability.
This is the purpose of proof-of-concept testing. It validates the direction while showing exactly where the next version can get better.
What This Test Does Not Claim
We want to be clear about the scope of this data.
This test does not mean the handguard stays cold. It does not mean every rifle, barrel, ammo type, suppressor setup, or firing schedule will produce the same numbers. It also does not replace final production validation.
This test shows that, under the controlled conditions tested, DualCool demonstrated substantially lower gas-block-area measurement temperatures than the traditional handguard configuration.
The most accurate claim is:
In this proof-of-concept test, DualCool demonstrated substantially lower gas-block-area measurement temperatures under repeated sustained-fire cycles compared to the traditional handguard tested.
That is the right way to talk about the result: specific, data-backed, and honest.
Why Industrial Metal 3D Printing Matters
DualCool is not a normal rail that was made expensive by a different manufacturing method. The point of using industrial metal additive manufacturing is the internal geometry.
The dual-layer architecture, air-gap concept, integrated internal structure, grip texture, and cable-management channel are all part of the system. These features are difficult to execute in the same way with a standard extrusion or conventional machining approach.
That design freedom is the reason DualCool exists.
The goal is to build more function into the handguard itself instead of forcing the shooter to rely on rail covers, wraps, panels, or cable-management add-ons to solve problems after the fact.
CP1 Material Properties in Context
A common question with any 3D-printed metal firearm component is whether the material is actually strong enough for the application. That is a fair question, and it is one of the reasons we want to separate the DualCool discussion from the idea of hobby-grade printing.
The CP1 material data provided by the manufacturer lists an ultimate tensile strength of 300 MPa, +/- 10 MPa, with elongation at break between 10% and 16%. That puts the reported CP1 tensile-strength range at approximately 290-310 MPa.
For context, published reference data from AZoM’s 6061 aluminum overview lists tensile strength at 310 MPa with elongation at 12-17%. United Aluminum’s 7075 alloy data lists 7075-T6 tensile strength at 83 ksi — approximately 572 MPa — with elongation at 11%.
| Material / Reference | Ultimate Tensile Strength | Elongation at Break | What It Means for DualCool |
|---|---|---|---|
| DualCool CP1 material, manufacturer-reported | 300 MPa +/- 10 MPa | 10-16% | Reported tensile strength falls in the general 6061-T6 range, with useful ductility for a metal printed component. |
| 6061-T6 aluminum, typical reference value | 310 MPa | 12-17% | A common aluminum benchmark used across many machined and extruded components. |
| 7075-T6 / T651 aluminum, typical reference value | 572 MPa / 83 ksi | 11% | A much higher ultimate-tensile-strength benchmark, commonly associated with high-strength aluminum applications. |
The honest way to interpret this is simple: CP1 should not be described as a 7075-strength material. Based on the supplied data, CP1 is better described as being in the general 6061-T6 tensile-strength range, with elongation that overlaps and can exceed common 6061-T6 and 7075-T6 reference values depending on the specific reference and product form.
That matters because DualCool is not relying on material strength alone. The platform is built around the combination of CP1 metal, heat treatment, industrial additive manufacturing, and internal geometry. Tensile strength tells only part of the story. A handguard’s real-world behavior also depends on cross-section, wall layout, air-gap structure, mounting interface, screw and barrel-nut design, SKU length, heat treatment, post-processing, and how loads are applied in use.
This is also why elongation matters. Elongation at break is one indicator of ductility. In plain terms, it helps answer the concern that a printed metal component may be brittle. The reported 10-16% elongation range supports the position that CP1 is not being used as a brittle novelty material; it is being used as an industrial aluminum alloy selected for additive manufacturing, heat-management geometry, and structural design freedom.
For readers comparing DualCool to conventional handguards, the main takeaway is this: the material data places CP1 in a familiar aluminum-performance conversation, while the real advantage of DualCool comes from what the manufacturing process allows us to build inside the handguard.
Reference values for 6061-T6 and 7075-T6 / T651 vary by product form, thickness, temper, and source. The comparison above uses published aluminum reference data from AZoM and United Aluminum as general context, not as a final production certification for any specific handguard model.
6061 aluminum reference data – AZoM
7075 aluminum alloy data – United Aluminum
What Comes Next
This proof-of-concept test is the first technical release in the DualCool development process. The next release will build on this data with more visual and production-focused information.
Future testing and documentation should include:
- Updated testing with the revised geometry
- Thermal camera video with a locked temperature scale
- Annotated thermal images at baseline, post-fire, and recovery intervals
- Suppressed and unsuppressed testing
- Final production weight by length
- Final SKU-level specifications
- Flex / deflection data for front-mounted accessories and laser-use applications
The goal is simple: keep improving the platform, keep publishing useful data, and give shooters, dealers, distributors, and writers a clear view of what DualCool is designed to do.
Product Links
To review current configurations, finishes, pricing, and availability, visit the DualCool CP1 Handguard product page. Precision and tripod-focused shooters can also view the DualCool CP1 ARCA Rail Edition. For additional Mitchell Defense components and related items, browse the Parts and Accessories category.
Final Takeaway
DualCool was developed because handguards are no longer just a place to hold the rifle. They are heat-management surfaces, accessory platforms, cable-routing systems, and structural components for modern rifle setups.
The first proof-of-concept test showed that the DualCool CP1 architecture produced meaningful thermal separation at the gas-block-area measurement location, especially under higher cumulative heat load.
It also showed where the design can improve, and those improvements are already being incorporated.
That is the point of building something new: test it, learn from it, refine it, and keep pushing the design forward.
DualCool is not cooler by accident. It is cooler by structure.
